Modulus of Elasticity E 205 kNmm 2. Elasticity is property of A36 steel indicating how it will restore it to its original shape after distortion.
Solved Use The Engineering Materials That Are Listed In The Chegg Com
G τxy γxy F A Δx.
G modulus of steel. In materials science shear modulus or modulus of rigidity denoted by G or sometimes S or μ is defined as the ratio of shear stress to the shear strain. The value of the bulk modulus for steel is about 23 107 psi or 16 1011 pascals three times the value for glass. It quantifies the relationship between tensilecompressive stress force per unit area and axial strain proportional deformation in the linear.
Modulus of Elasticity Average Properties of Structural Materials Shear Modulus Poissons Ratio Density Thermal Properties of Metals Conductivity Thermal Expansion Specific Heat The following chart gives ultimate strength yield point and modulus of elasticity data for steel and iron. Youngs modulus of Steel. Modulus of Rigidity Equation.
1425-1538 C 2600-2800 F. F is the force acting on the object. Regular coating G 235.
The Modulus of rigidityG which is sometimes referred to as the shear modulus can be calculated simply by shear stressτxy over shear strainγxy. A is the area on which the force is acting. In this article you will learn the modulus of rigidity equation its applicability to material selection and common values.
Mechanical Properties Original Value Comments. Triple-spot test both sides. Regular coating G 210.
As steel is the most widely used material in industries we will have a look at the Youngs modulus of Steel for getting a rough estimate of the values. ASTM A36 structural steel has good weldability it is usually hot rolled into rectangle steel square steel round steel steel plate and is also commonly made into all kinds of steel sections such. A36 steel is the most commonly used hot rolled mild steel.
A36 steel Modulus of Elasticity A36 steel Youngs Modulus is 200 GPa 29000 ksi. Modulus of Elasticity. The following chart gives typical values for the shear modulud of rigidity.
Modulus of Elasticity - is a measure of stiffness of. Tensile Modulus - or Youngs Modulus alt. G Shear Modulus - Slope of the initial linear portion of the shear stress-strain diagram.
Youngs modulus the Young modulus or the modulus of elasticity in tension or compression ie negative tension is a mechanical property that measures the tensile or compressive stiffness of a solid material when the force is applied lengthwise. Shear Modulus G GPa 106 psi Rubber. Design values of additional material mechanical properties for structural steel.
E 210000 MPa Shear modulus. Ref-1 For all practical purposes modulus of elasticity of all tool steels in all conditions is about 210 GPa 30 10 6 psi at room temperature. Properties of Steel MATERIALS Australian Steel Yield Stress Tensile Strength Standard Grade fy fu MPa MPa AS 1163 C250 and C250L0 250 320 C350 and C350L0 350 430 C450 and C450L0 450 500 Property Symbol Value Elastic Modulus E 200 x 103 MPa Shear Modulus G 80 x 103 MPa Density ρ 7850 kgm3 Poissons Ratio ν 025 Coefficient of Thermal αT 117 x 10.
76Gpa Modulus of rigidity of mild steel. Where τ xy F A τ x y F A is shear stress. γxy Δx l γ x y Δ x l is the shear strain.
Elastic modulus decreases uniformly to about 185 GPa 27 10 6 psi at 260 C 500 F and about 150 GPa 22 10 6 psi at 540 C 1000 F. Shear Modulus of Elasticity G 7885 kNmm 2. 52 rows The Youngs modulus of steel also referred to as modulus of elasticity of steel.
A36 material physical properties are given in the lists below. F l AΔx G τ x y γ x y F A Δ x l F l A Δ x. G E 21 ν 80769 MPa 81000 MPa Poissons ratio in elastic range.
According to EN1993-1-1 326 the design values of the material properties and coefficients for structural steel are. Shear modulus of steel Modulus of rigidity of steel Structural steel793Gpa Modulus of rigidity of stainless steel772Gpa Modulus of rigidity of carbon steel. 42 rows 1 GPa 109 Pa 0145 x 106 psi lbfin2 1 x 106 psi 69 GPa.
The following table provides typical values of Youngs modulus with respect to increasing temperature for ferrous materials. Triple-spot test both sides. Shear Modulus of Rigidity.
The A36 steel Poissons Ratio is 026 and A36 steel Shear Modulus is 75 GPa 10900 ksi. It varies with strain. E Steel 30 x 106 psi E Aluminum 10 x 106 psi E t Tangent Modulus - Slope of the stress-strain curve above the proportional limit.
Modulus of elasticity Youngs modulus. Engineering Materials Strength of Materials. Modulus Of Rigidity Formula.
785 gcm3 0284 lbin3. There is no single value for the tangent modulus.
Solved Compute The Elastic Modulus For The Following Metal Chegg Com
Solved Confirm The Shear Modulus Value Given In Table 3 1 Of Chegg Com

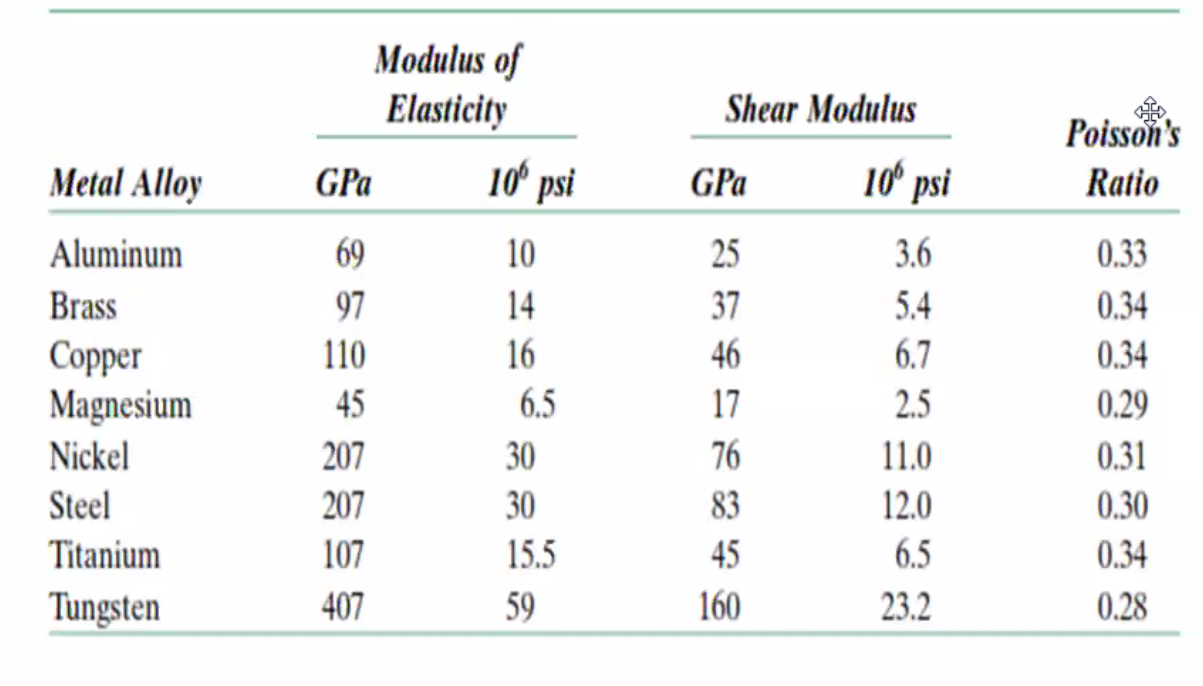

Solved Modulus Of Elasticity Shear Modulus Metal Alloy Chegg Com
